Melting and Boiling Point Apparatus with Camera VMP-CM

Product Description

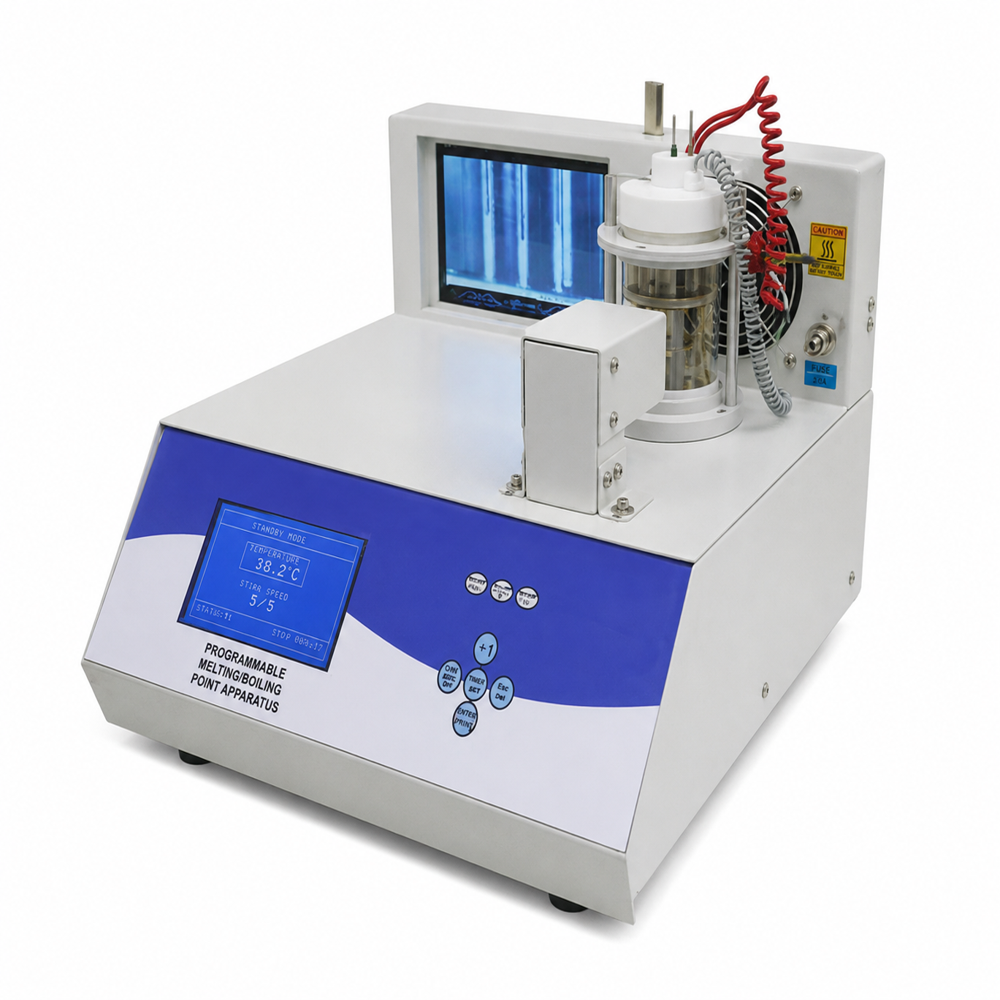

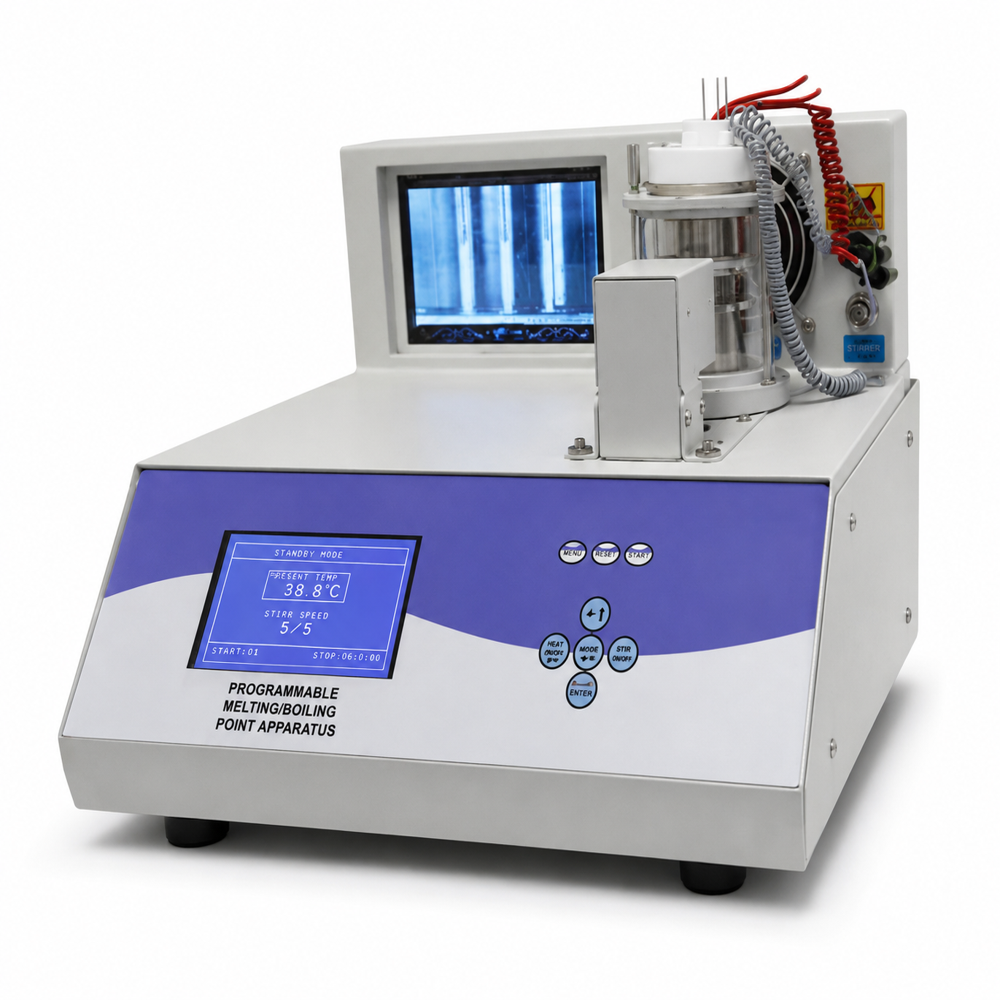

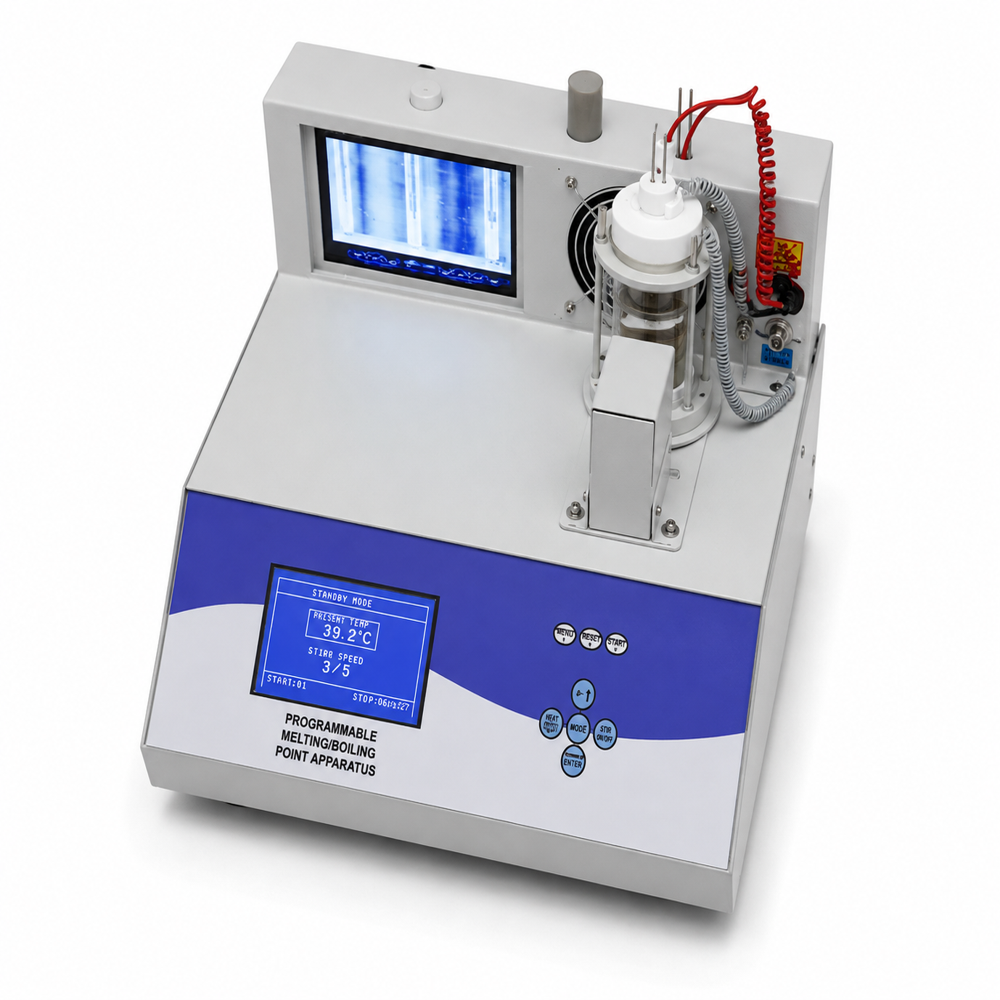

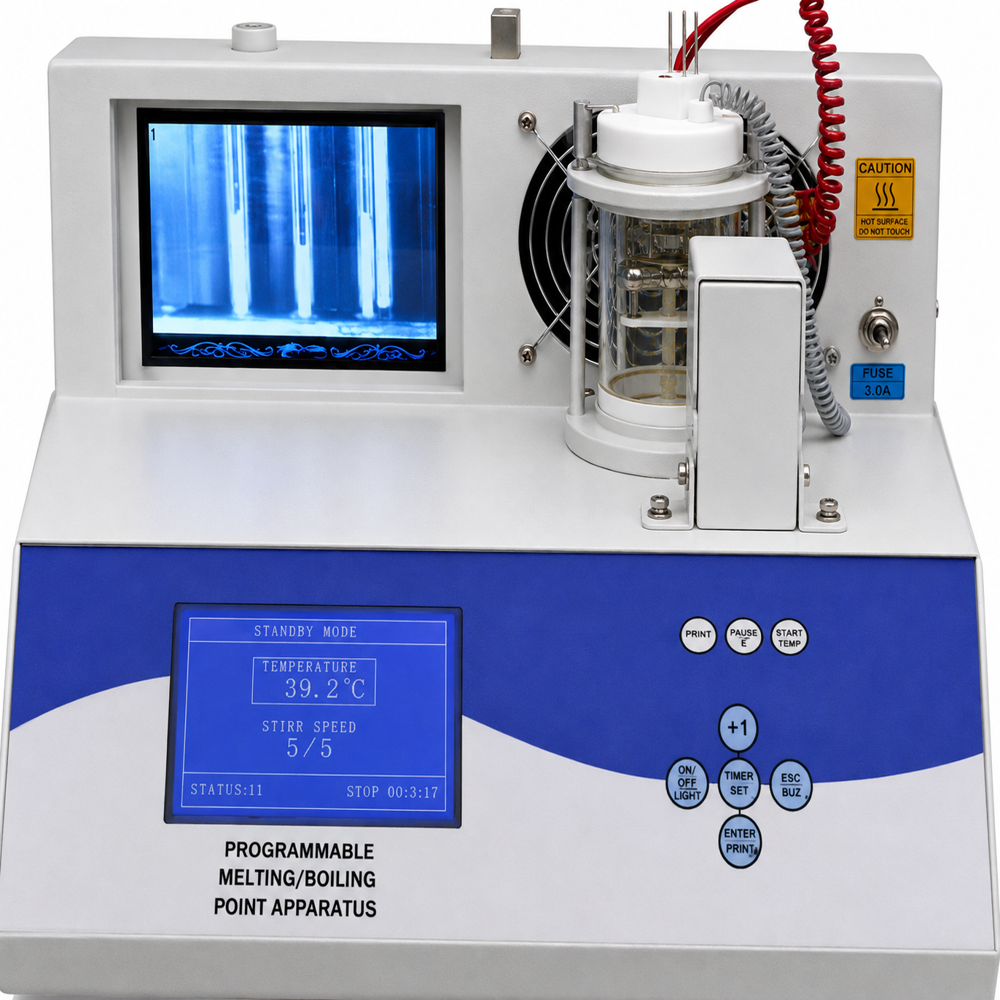

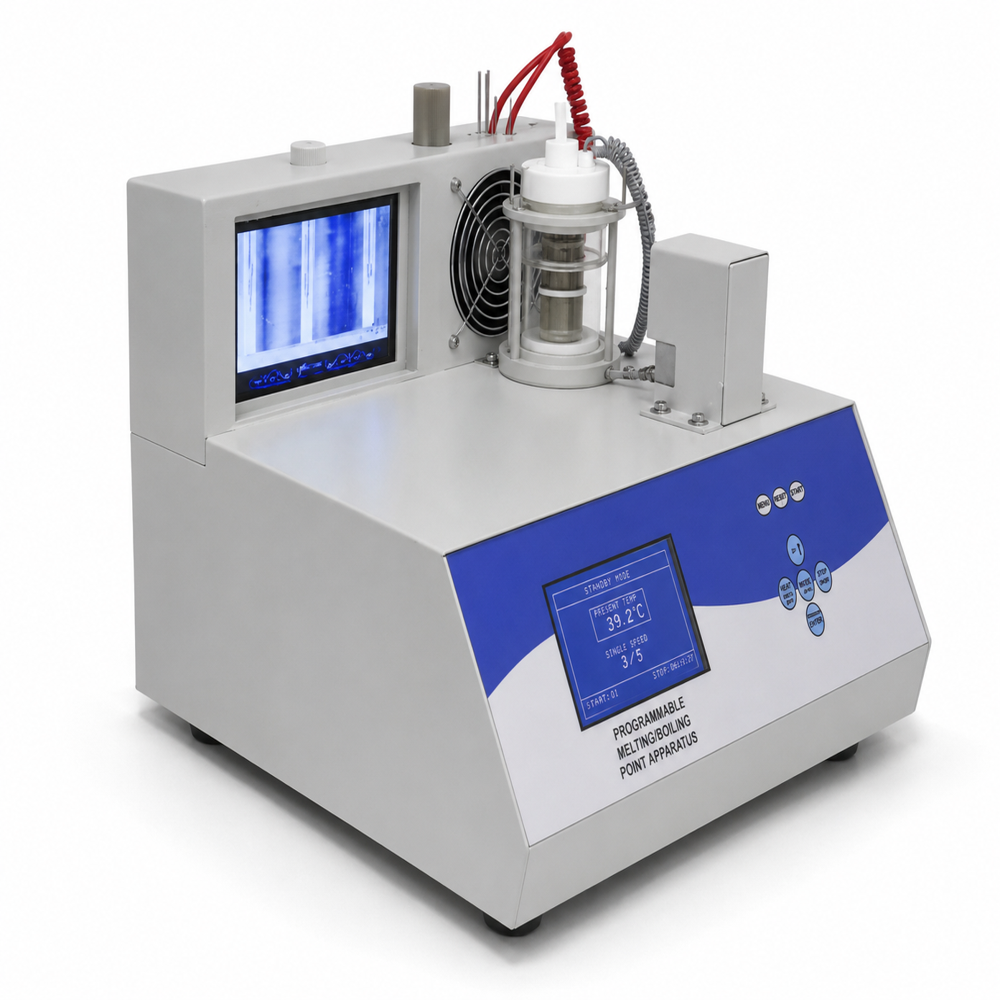

The Veego VMP-CM Melting and Boiling Point Apparatus with Camera is designed for laboratories that require accurate melting point and boiling point determination along with real-time visual observation. Equipped with a 24 128 graphic display, colour monitor and integrated camera, the instrument enables users to observe the sample throughout the test while improving documentation and result verification.

The instrument allows users to select either melting point or boiling point testing and accommodates three capillary tubes simultaneously for melting point determination. A time versus temperature graphical representation helps monitor the complete test process, while built-in validation and memory functions support routine laboratory work. The system can store 100 test records, 99 melting point products and 25 boiling point products, making it suitable for laboratories handling multiple products on a regular basis.

The VMP-CM operates over a temperature range of 15C above room temperature to 300C, with a temperature resolution of 0.1C and accuracy of 0.3C to 0.5C. Online and offline printing facilities, together with product and date selection, simplify laboratory documentation, while the tactile keypad and QWERTY keyboard provide convenient instrument operation.

Typical Applications

The Veego VMP-CM is suitable for:

• Melting point determination
• Boiling point determination
• Routine laboratory analysis
• Quality Control (QC) laboratories
• Research & Development (R&D) laboratories
• Product identification and verification
• Laboratories requiring visual observation of melting behaviour through an integrated camera

Key Features

• Integrated colour monitor with inbuilt camera
• Facility to select melting point or boiling point
• Three capillary tubes simultaneously for melting point testing
• Time vs. Temperature graphical representation
• Built-in validation facility
• Stores 100 test records
• Memory for 99 melting point products
• Memory for 25 boiling point products
• Online and offline printing facility
• Product and date selection for print reports
• Temperature range: 15C above room temperature to 300C
• Temperature resolution: 0.1C
• Accuracy: 0.3C to 0.5C
• 24 128 graphic display
• Tactile keypad with QWERTY keyboard
• 230 V, 50 Hz, 500 W operation

Why Buy from Shree Krishna Instruments?

Shree Krishna Instruments is an Authorized Sales & Service Partner for Veego Instruments. We believe supplying the instrument is only the beginningreliable technical support throughout its working life is equally important.

Our team provides installation and commissioning, preventive maintenance, troubleshooting, AMC support, spare parts assistance and responsive after-sales service to help your Veego instrument continue delivering dependable laboratory performance.

Frequently Asked Questions

What is the Veego VMP-CM used for?

The Veego VMP-CM is used for melting point and boiling point determination with integrated camera-based observation, making it suitable for laboratories that require accurate analysis together with visual monitoring of the sample.

How many samples can be tested at one time?

The instrument accommodates three capillary tubes simultaneously for melting point determination.

What is the temperature range of the VMP-CM?

The testing temperature range is 15C above room temperature to 300C, with a temperature resolution of 0.1C and accuracy of 0.3C to 0.5C.

Does the instrument include a camera?

Yes. The VMP-CM is equipped with an integrated camera and colour monitor, allowing the operator to observe the melting process during testing.

Does the VMP-CM store test data?

Yes. The instrument stores 100 test records, 99 melting point products and 25 boiling point products, supporting routine laboratory documentation.

Does the instrument support printing?

Yes. The VMP-CM provides online and offline printing facilities with product and date selection for laboratory records.

What type of user interface does the VMP-CM provide?

The instrument features a 24 128 graphic display with a tactile keypad and QWERTY keyboard for programming and operation.
