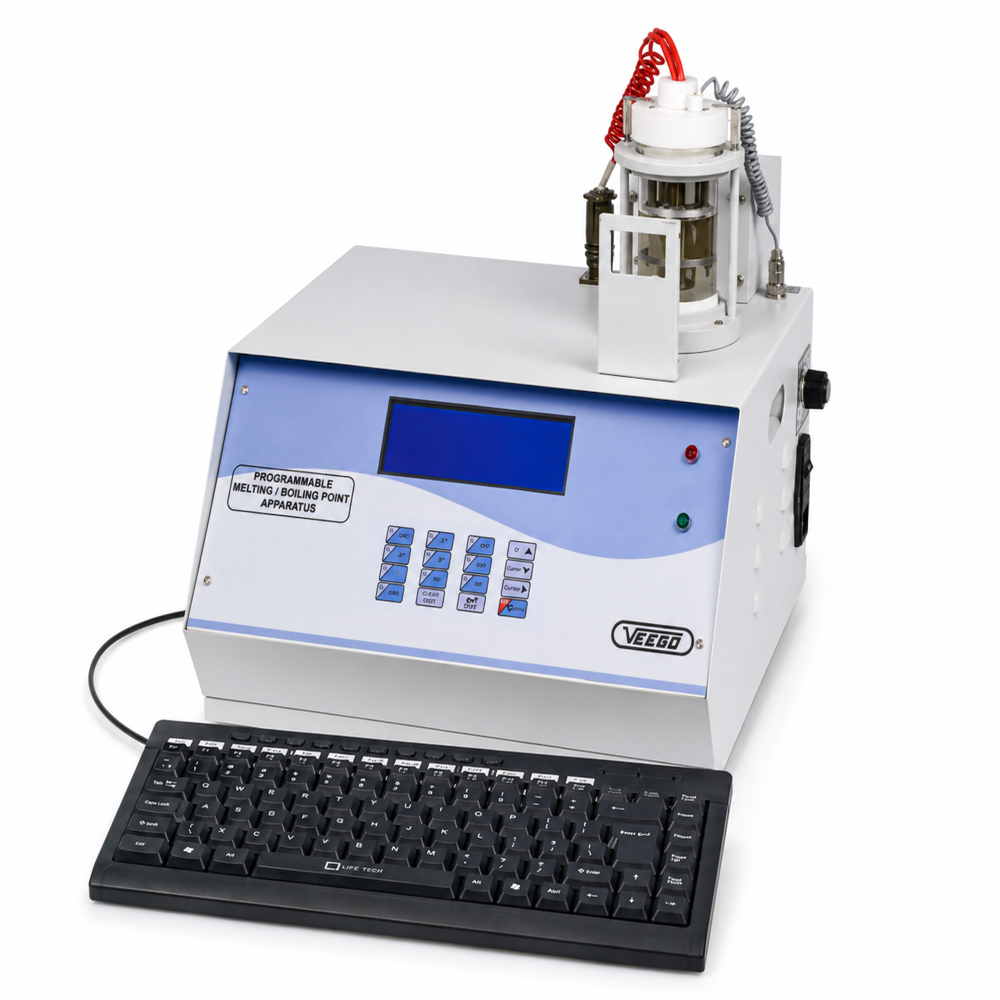

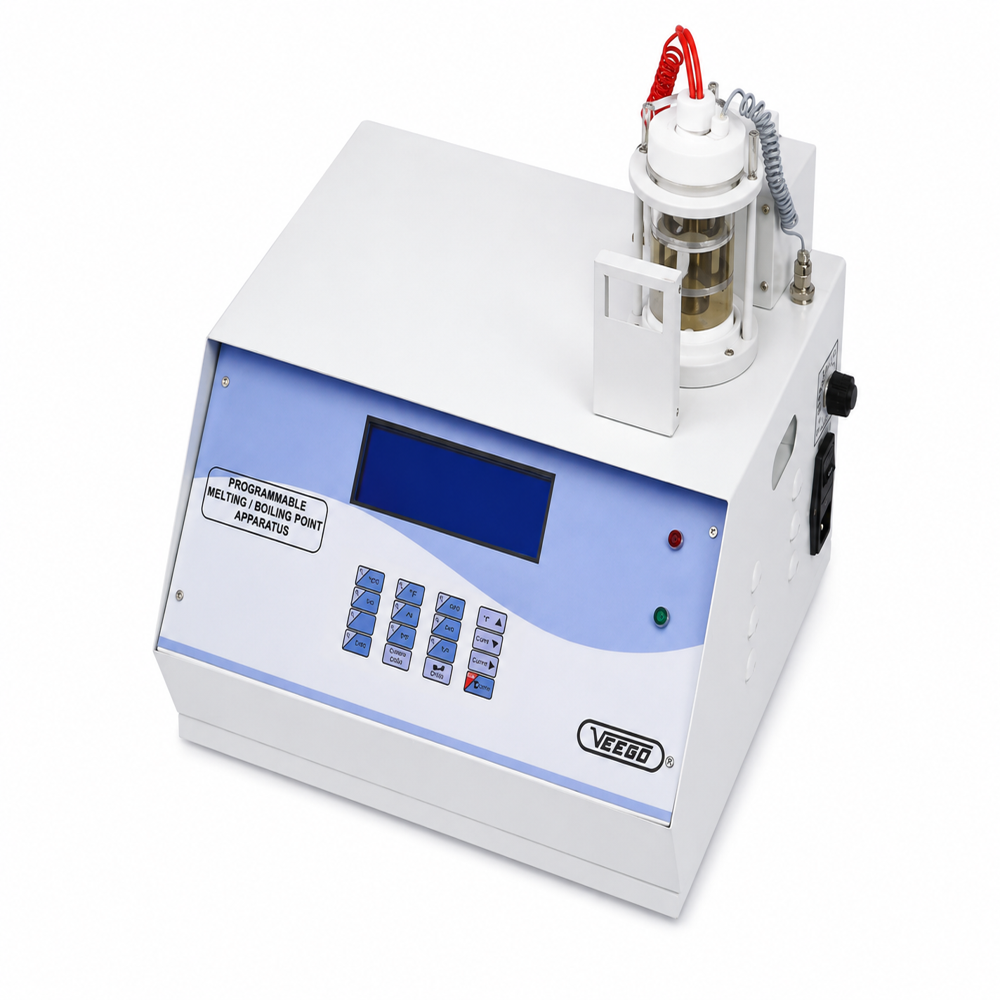

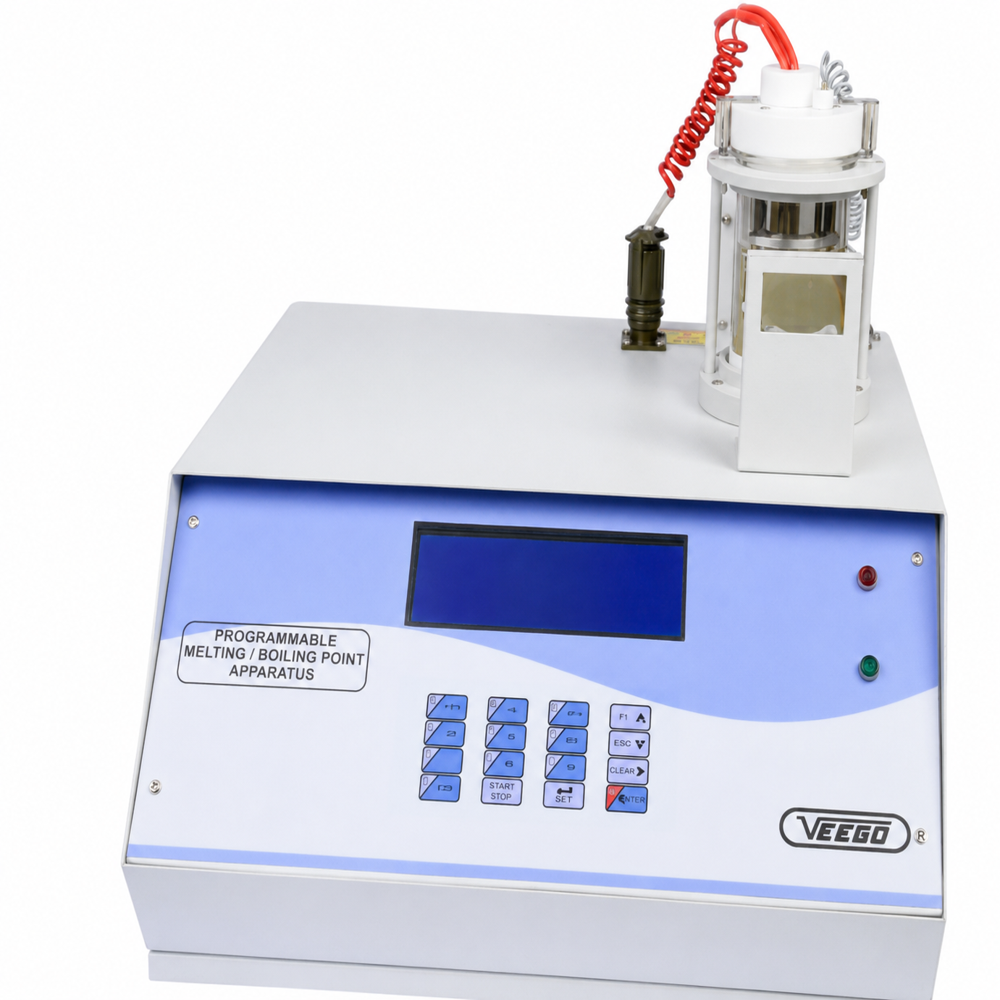

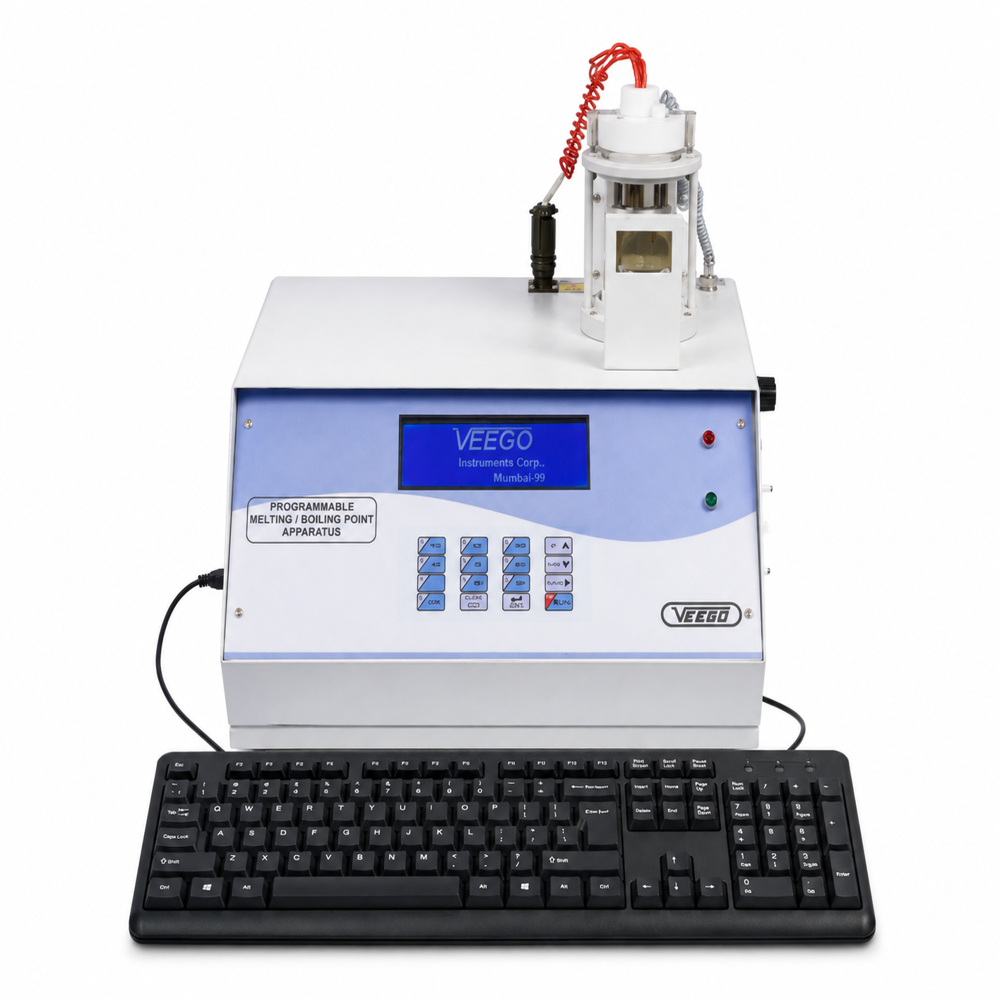

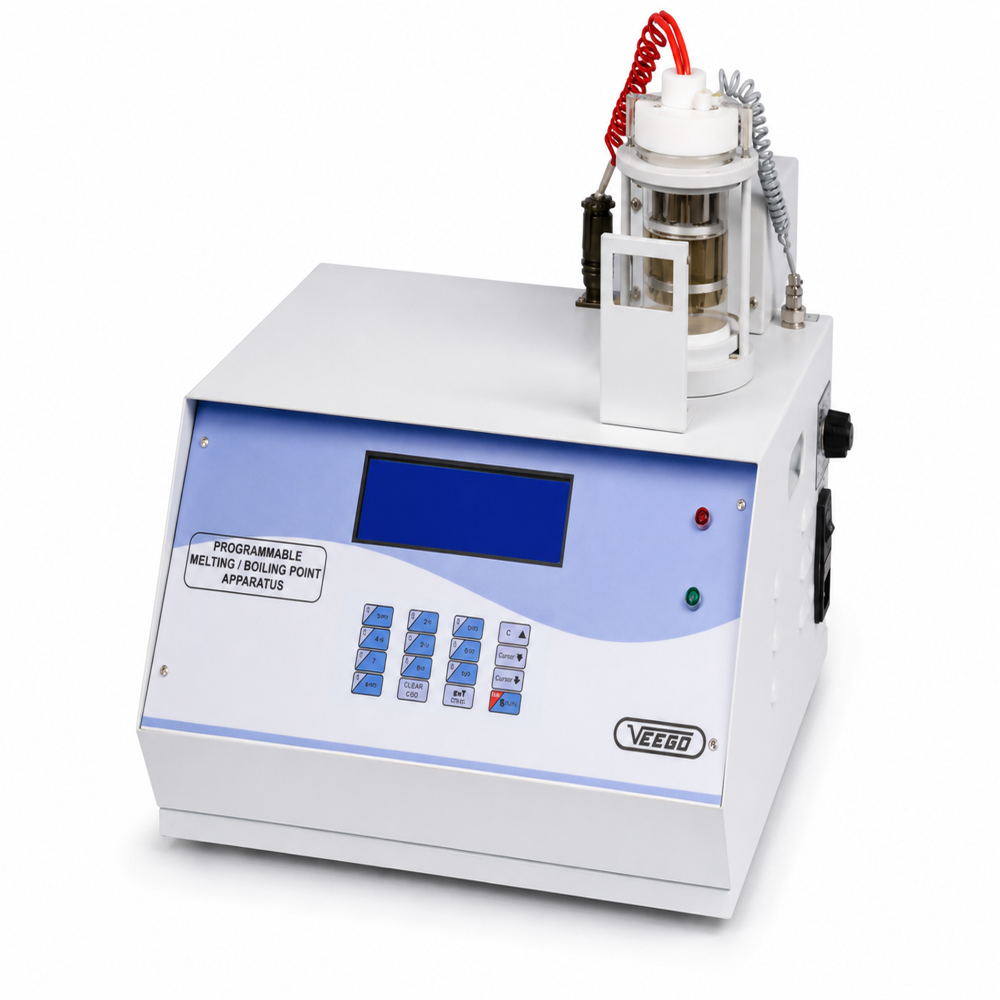

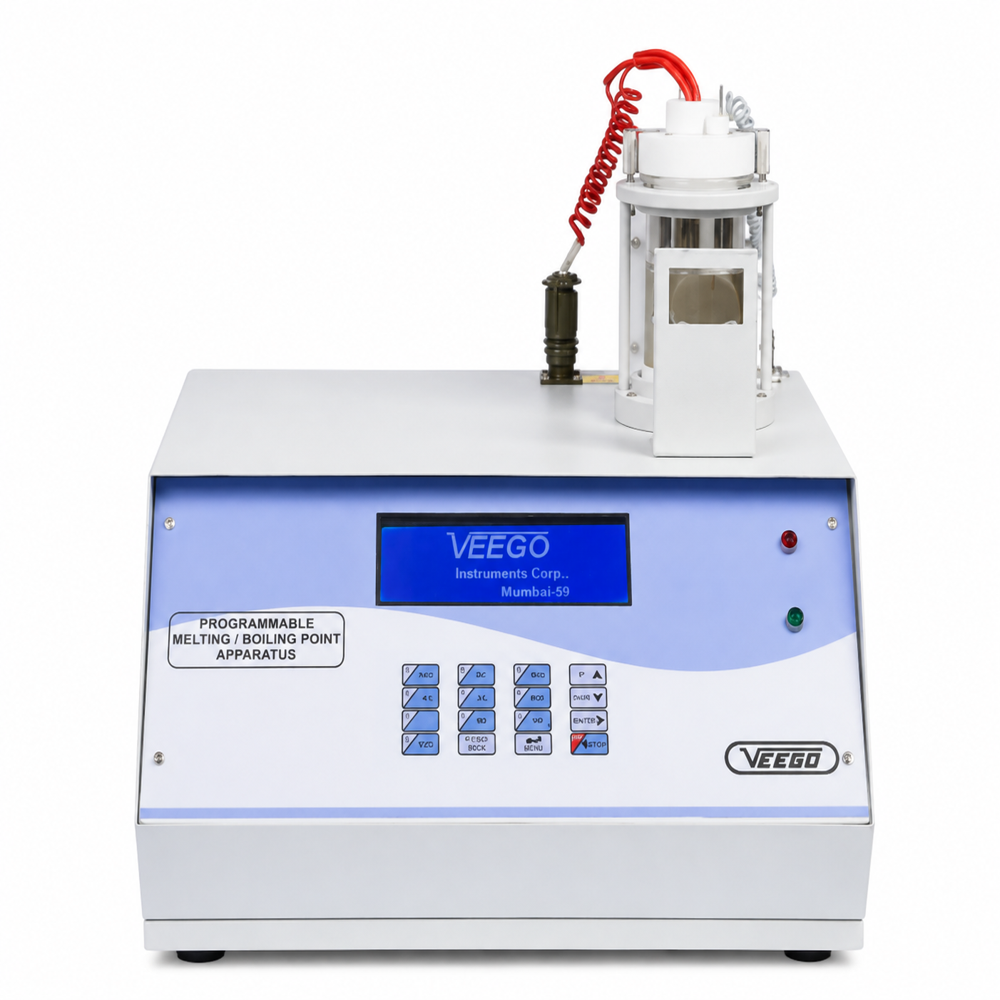

Automatic Melting Boiling Point Apparatus VMP-PM

Product Description

The Veego VMP-PM Automatic Melting Boiling Point Apparatus is a microcontroller-based laboratory instrument designed for accurate melting point and boiling point determination. It combines dependable temperature control with a user-friendly interface, making it suitable for routine laboratory testing where repeatable and reliable results are required. The instrument allows users to select either melting point or boiling point analysis while providing digital operation and convenient data management.

Unlike conventional systems, the VMP-PM features an illuminated silicon oil bath with an integrated magnifying lens, allowing clear observation of the capillary tip throughout the test. The instrument stores 100 test records, along with 99 melting point products and 25 boiling point products, making it well suited for laboratories handling multiple routine samples. Built-in validation and online/offline printing further simplify laboratory documentation.

Operating over a temperature range of 15C above room temperature to 300C, the VMP-PM provides 0.1C temperature resolution with an accuracy of 0.3C to 0.5C. A 24 128 graphic display, tactile keypad and external QWERTY keyboard support convenient operation, while compatibility with a dot matrix printer enables printed laboratory records whenever required.

Typical Applications

The Veego VMP-PM is suitable for:

• Melting point determination
• Boiling point determination
• Routine Quality Control (QC) laboratories
• Research & Development (R&D) laboratories
• Product identification and verification
• Laboratories requiring manual observation through a magnifying lens during melting point analysis

Key Features

• Facility to select melting point or boiling point
• Microcontroller-based operation
• Illuminated silicon oil bath with integrated magnifying lens
• Built-in validation facility
• Stores 100 test records
• Memory for 99 melting point products
• Memory for 25 boiling point products
• Online and offline printing facility
• Product and date selection for printed reports
• Temperature range: 15C above room temperature to 300C
• Temperature resolution: 0.1C
• Accuracy: 0.3C to 0.5C
• 24 128 graphic display
• Tactile keypad with external QWERTY keyboard
• Compatible with dot matrix printer
• Power supply: 230 V, 50 Hz, 500 W

Why Buy from Shree Krishna Instruments?

Shree Krishna Instruments is an Authorized Sales & Service Partner for Veego Instruments. We believe supplying the instrument is only the first stepreliable service throughout its working life is equally important.

Our team provides installation and commissioning, preventive maintenance, troubleshooting, AMC support, spare parts assistance and responsive after-sales service, ensuring your Veego laboratory instrument continues to perform reliably throughout its lifecycle.

Frequently Asked Questions

What is the Veego VMP-PM used for?

The Veego VMP-PM is designed for melting point and boiling point determination in laboratories. Its microcontroller-based operation and digital display make it suitable for routine quality control and research applications.

What is the temperature range of the VMP-PM?

The instrument operates from 15C above room temperature to 300C, with a temperature resolution of 0.1C and specified accuracy of 0.3C to 0.5C.

How are samples observed during testing?

The VMP-PM uses an illuminated silicon oil bath with an integrated magnifying lens, allowing the operator to clearly observe the capillary tip throughout the melting point test.

Does the VMP-PM include memory for test results?

Yes. The instrument stores 100 test records, along with 99 melting point products and 25 boiling point products for routine laboratory use.

Does the instrument support printing?

Yes. The VMP-PM provides online and offline printing facilities with date and product selection, and is compatible with a dot matrix printer.

Does the VMP-PM include a validation facility?

Yes. The instrument includes a built-in validation facility, helping laboratories perform routine verification as part of their testing workflow.

What type of display does the VMP-PM use?

The instrument features a 24 128 graphic display, operated using a tactile keypad with support for an external QWERTY keyboard.
