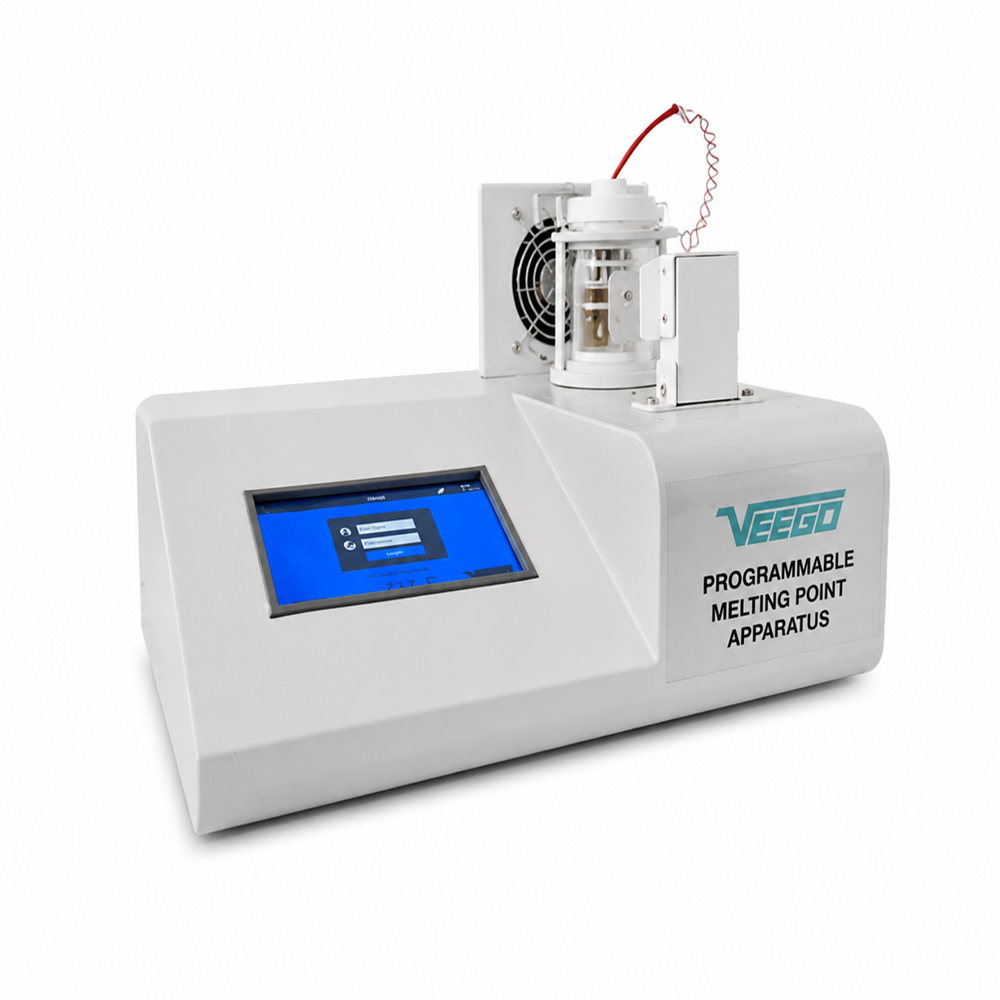

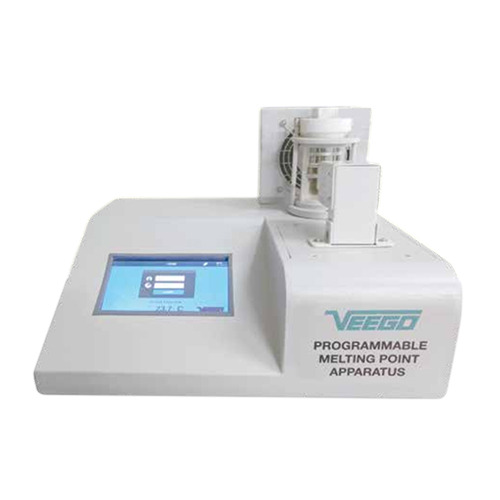

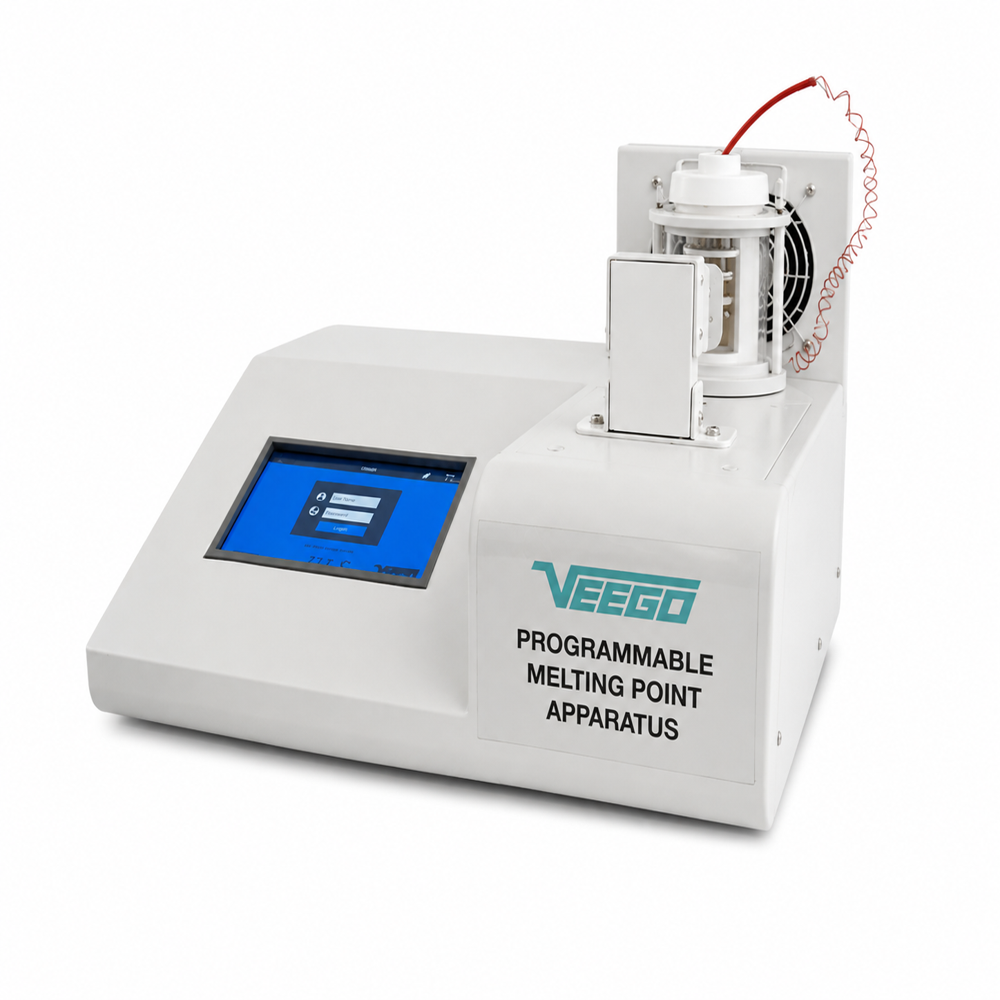

Veego VMP-AD(T) CFR 21 Part 11 Compliant Programmable Melting/Boiling Point Apparatus

Product Description

The Veego VMP-AD(T) Programmable Melting/Boiling Point Apparatus is a CFR 21 Part 11 compliant instrument designed for laboratories that require controlled melting point and boiling point determination along with user access, data management and electronic record features. The instrument allows selection between melting point and boiling point test modes and can test three melting point samples or one boiling point sample at a time.

The VMP-AD(T) operates from 15C above room temperature up to 300C, with a temperature resolution of 0.1C and accuracy of 0.3C to 0.5C. A 7-inch TFT color monitor with capacitive touchscreen provides the operating interface, supported by an embedded high-performance single-board computer for data processing.

For laboratories working with controlled user access and electronic records, the instrument includes role-based access control, user management, unique user IDs, password management, automatic system timeout after inactivity and audit trail functionality. The system tracks prints and re-prints through the audit trail, while backup and restore functions support data management. Data can also be backed up directly to a server or PC through the Ethernet interface.

The VMP-AD(T) also includes 26 GB of storage, built-in validation and provision for unknown or new product evaluation. These functions make it suitable for routine melting and boiling point testing where controlled operation, traceability and laboratory documentation are required.

Typical Applications

The Veego VMP-AD(T) is used for melting point determination, melting range testing and boiling point determination. It is particularly relevant for laboratories that require CFR 21 Part 11 compliance features alongside routine melting and boiling point analysis.

The instrument also provides a dedicated facility for unknown or new product evaluation, allowing laboratories to work with samples where the expected melting characteristics have not already been established.

Key Features

• CFR 21 Part 11 compliant instrument
• Melting point and boiling point test selection
• Three samples simultaneously for melting point determination
• One sample at a time for boiling point determination
• Temperature range: 15C above room temperature to 300C
• Accuracy: 0.3C to 0.5C
• Temperature resolution: 0.1C
• 7-inch TFT color capacitive touchscreen
• Role-based access control
• User management with unique user IDs
• Password management as per guidelines
• Automatic system timeout after inactivity
• Print and re-print tracking through audit trail
• Built-in validation facility
• Provision for unknown/new product evaluation
• 26 GB data storage
• Backup and restore facility
• Direct backup to server or PC
• Ethernet interface for PC connectivity
• High-performance single-board computer for data processing
• Power supply: 230 V, 50 Hz, 500 W

Why Buy from Shree Krishna Instruments?

Shree Krishna Instruments is an Authorized Sales & Service Partner for Veego Instruments. For us, supplying the instrument is only one part of the job. Service after installation matters just as much.

We support Veego instruments with installation and commissioning, preventive maintenance, troubleshooting, AMC support, spare parts assistance and after-sales service. The objective is straightforward: when your Veego instrument needs technical attention, you should have a service partner you can reach.

Frequently Asked Questions

Q: Is the Veego VMP-AD(T) CFR 21 Part 11 compliant?
Yes. The VMP-AD(T) is specified by Veego as a CFR 21 Part 11 compliant Melting Point Apparatus. It includes functions for controlled user access, user management, unique user identification, password management, system timeout and audit trail tracking of prints and re-prints.

Q: What is the temperature range of the VMP-AD(T)?
The instrument operates from 15C above room temperature up to 300C. It has a temperature resolution of 0.1C and accuracy of 0.3C to 0.5C.

Q: Can the VMP-AD(T) determine both melting point and boiling point?
Yes. The instrument allows the operator to select either melting point or boiling point testing. It can handle three samples simultaneously for melting point determination and one sample for boiling point determination.

Q: Does the VMP-AD(T) provide audit trail functionality?
Yes. The catalogue specifies that the system tracks prints and re-prints through an audit trail.

Q: What user access controls are available?
The instrument provides role-based access control along with user management, unique user IDs, password management and automatic timeout after inactivity.

Q: Does the instrument have a validation facility?
Yes. The VMP-AD(T) has a built-in validation facility and also provides a facility for evaluating unknown or new products.

Q: Can VMP-AD(T) data be backed up to a PC or server?
Yes. Data can be backed up directly to a server or PC. The instrument provides Ethernet connectivity as well as backup and restore functionality.

Q: What type of display is provided?
The VMP-AD(T) uses a 7-inch TFT color monitor with capacitive touchscreen, providing a graphical interface for programming and operation.

Q: What is the power requirement of the VMP-AD(T)?
The specified power supply is 230 V, 50 Hz, 500 W.

Q: Is installation and after-sales service available?
Yes. Shree Krishna Instruments is an Authorized Sales & Service Partner for Veego Instruments and provides installation and commissioning, preventive maintenance, troubleshooting, AMC support, spare parts assistance and after-sales service.
